Install firmware



1. Install Arduino IDE

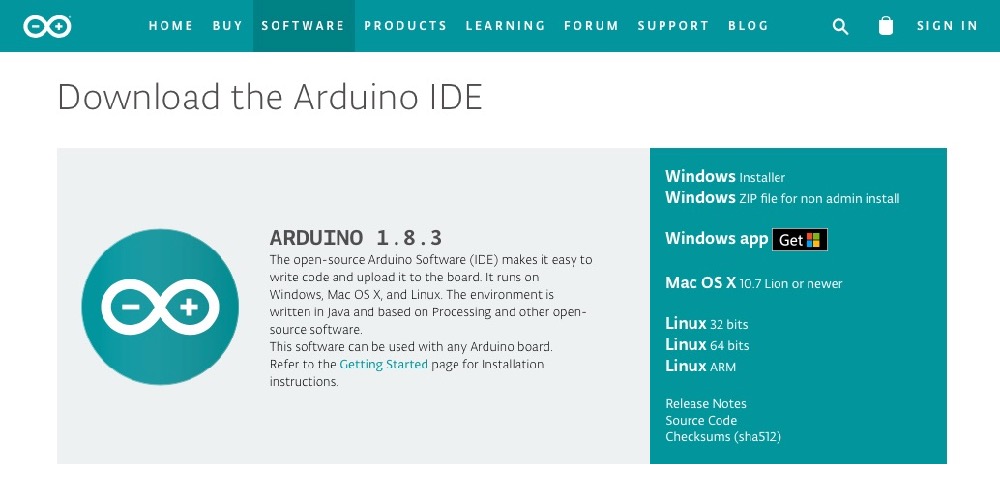

Download and install Arduino IDE 1.8.x or Above form https://www.arduino.cc/en/Main/Software







2. Add ESP8266 Modules

Arduino \ Preferences \
Enter "http://arduino.esp8266.com/stable/package_esp8266com_index.json"
to Additional Boards Manager URLs



Arduino \ Board \ Boards Manager
Select "esp8266" and click Install button




Now, "Generic ESP8266 Module" show in Board menu.



3. Import PWM Servo Driver Library
Download Adafruit PWM Servo Driver Library form http://github.com/adafruit/Adafruit-PWM-Servo-Driver-Library





Arduino \ Sketch \ Include Library \ Add .ZIP Library
and select your Adafruit-PWM-Servo-Driver-Library.zip file



4. Install Control Board USB Driver

Download and Install Control Board USB Driver form

USB to PL2303 Windows Driver

USB to PL2303 macOS Driver

5. Upload Firmware

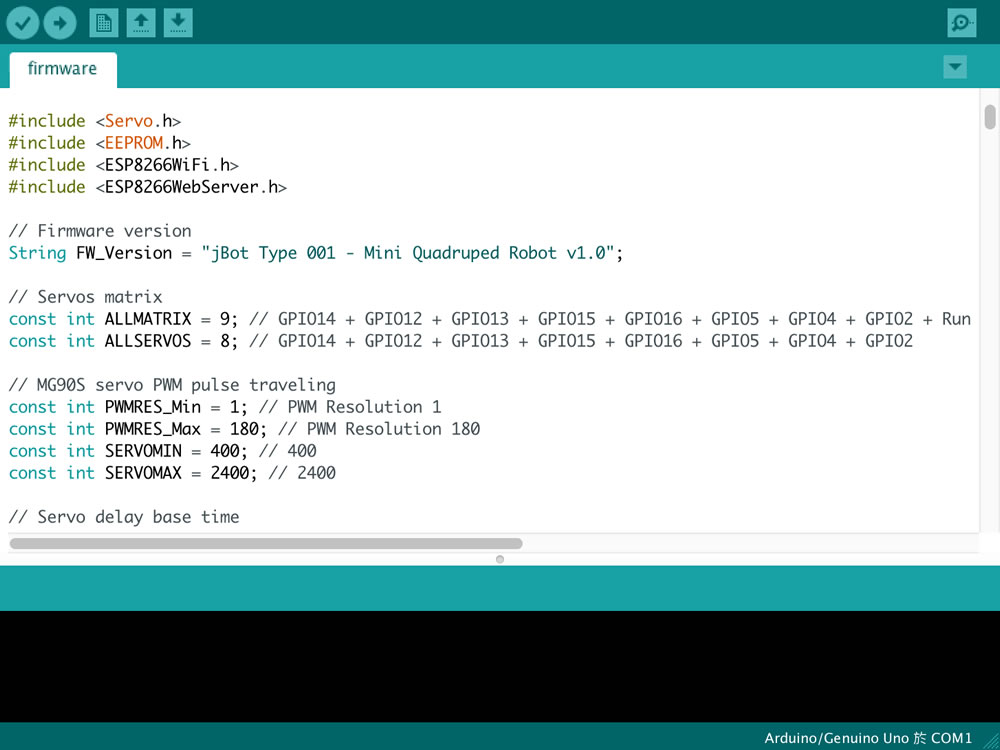

Download and open firmware.ino from jBot Q1 mini website
Download here




Arduino \ Tools \
Change board settings as below:



Arduino \ Tools \
Change port to connect TinyPlan.



Press upload button in Arduino IDE,
When finish you can see below message:
